SMSEagle NXS-9750 4G (dual modem)

NXS-9750 4G is a dual modem device with a sending/receiving throughput of up to 60 SMS/min. The device can be configured for device failover (HA cluster), as well as modem failover and multi-modem strategy.

SMSEagle is a professional hardware SMS gateway for sending and receiving SMS messages in an automated manner. The device is designed with focus on reliability and stability. It has a Linux on-board, modern responsive web-interface, database backend, and built-in 4G modems with watchdog mechanism.

Thanks to a built-in 2 x 4G modem, SMS messages are sent/received directly to/from UMTS/LTE network without using any external 3rd party solutions, and with double speed. The device is equipped with external LTE antennas with 2dBi gain – important especially in poor signal reception conditions (eg. Server rooms). SMSEagle has a built-in SQL database for secure storage of messages. Built-in SNMP agent allows to monitor performance of the SMSEagle. The device has built-in plugins that enable additional functionalities and easy to use HTTP API for integration with external applications.

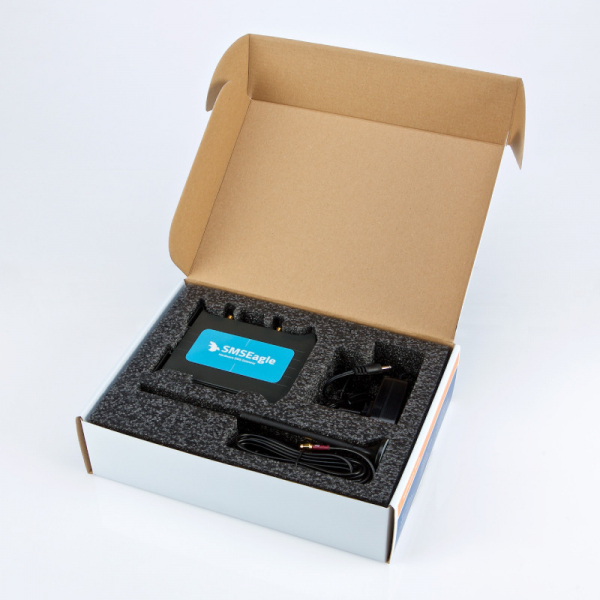

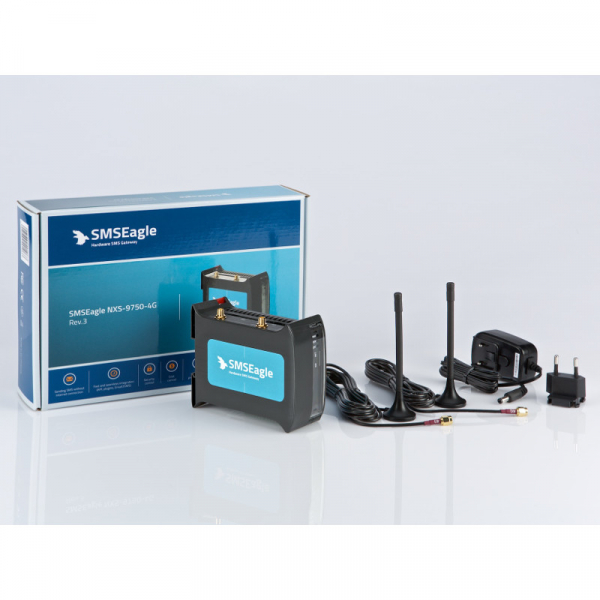

  • SMSEagle hardware SMS gateway
  • Omnidirectional 2dBi GSM antenna
  • AC/DC Adapter (input voltage: 100-240V)
  • Quick-start guide
  • 12-month warranty
  • Access to free software upgrades within warranty period


Model Type NXS-9750-4G
Processor type ARM A53 1.2GHz (quad-core)
Internal storage 4GB eMMC storage
2x 4G modem

RF Bands:

• LTE FDD: 1-5, 7, 8, 12, 13, 17, 20, 25, 26, 28, 29, 30 (Rx only), 66
• LTE TDD: 38, 40, 41
• 3G: 1, 2, 4, 5, 8

LTE standard Cat. 11

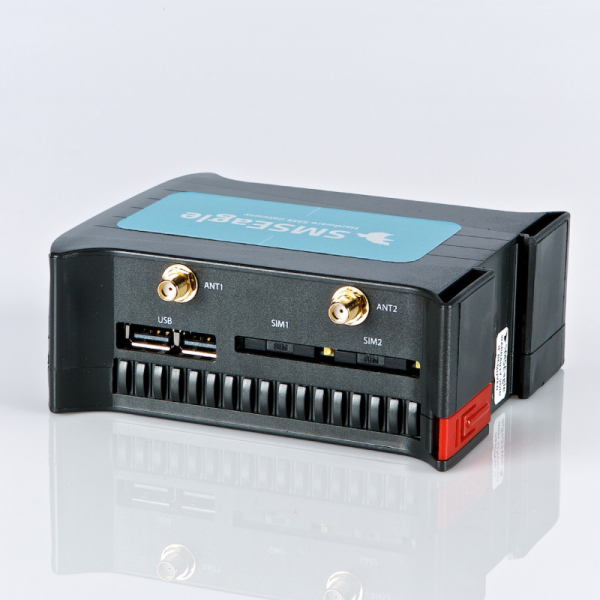

SIM card standard 2x SIM card (mini)
RTC Clock RTC 240B SRAM, Watchdog timer
External Antenna
Antenna Omnidirectional 2dBi antenna with magnetic foot
Connector SMA
Cable length 3m
Noise level Fanless
Dimensions (width x depth x height) 35 x 120 x 101 mm
Weight 350g
Casing ABS, DIN rail installation (Rack mountable)
Operating parameters
  • Operating temperature: 0 ~ 60°C
  • Humidity: 5 ~ 95% RH (no condensation)
Power consumption max 27W
Power supply
  • Voltage ranges: 100–240 V AC
  • Frequency: 50–60Hz
  • Plug type: Euro plug (other plugs available for purchase)

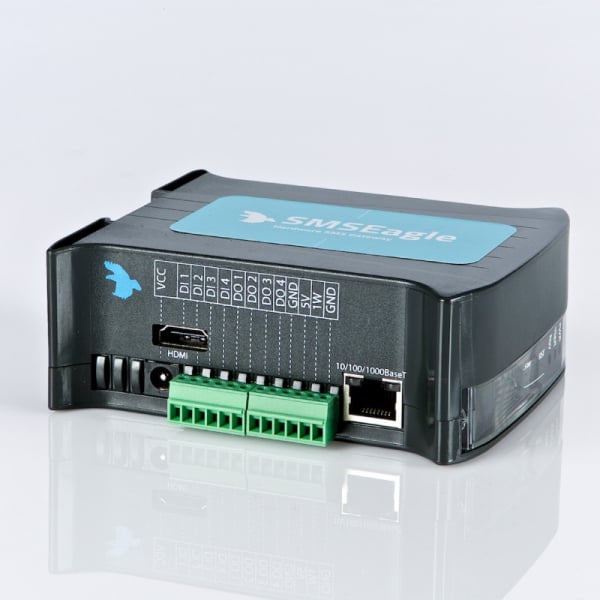

Additional connectors
  • LAN Ethernet (RJ45) 10/100/1000 Mbps
  • HDMI
  • 2 x USB
  • 4 x DI
  • 4 x DO
  • 1 x 1 Wire
Linux kernel 4.14
Approvals CE, FCC, IC, RoHS, GCF (for RF-module), PTCRB (for RF-module), RCM (for RF-module)
