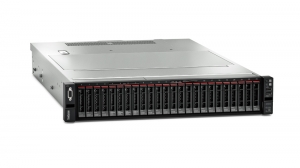

Lenovo Server ThinkSystem SR650, 2U, Intel Xeon Silver 4110 2.1Ghz, 16GB RAM DDR4,Matrox G200

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.


Product Description	Lenovo ThinkSystem SR650 - rack-mountable - Xeon Silver 4110 2.1 GHz - 16 GB - 0 GB
Type	Server - rack-mountable
Height (Rack Units)	2U
Localisation	EMEA
Server Scalability	2-way
Processor	1 x Intel Xeon Silver 4110 / 2.1 GHz (3 GHz) (8-core)
Processor Main Features	Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory	11 MB
Cache Per Processor	11 MB
RAM	16 GB (installed) / 768 GB (max) - DDR4 SDRAM - ECC
Storage Controller	RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (ThinkSystem RAID 930-8i)
Server Storage Bays	Hot-swap 2.5"
Hard Drive	No HDD
Optical Storage	No optical drive
Graphics Controller	Matrox G200
Video Memory	16 GB
Power	AC 120/230 V (50/60 Hz)
Power Redundancy	Optional
OS Provided	No operating system
Dimensions (WxDxH)	44.5 cm x 72 cm x 8.7 cm
Weight	19 kg
Manufacturer Selling Program	TopSeller
Environmental Standards	ENERGY STAR Qualified
Manufacturer Warranty	Limited warranty - 3 years



Components and connectors

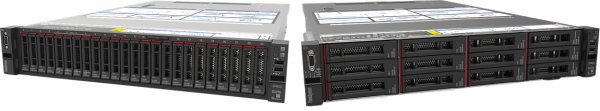

The following figure shows the front of the SR650 server with up to 16x 2.5-inch drive bays.

Figure 2. Front view of the SR650: Up to 16x 2.5-inch drive bays

The following figure shows the front of the SR650 server with up to 24x 2.5-inch drive bays.

Figure 3. Front view of the SR650: Up to 24x 2.5-inch drive bays

The following figure shows the front of the SR650 server with 8x 3.5-inch drive bays.

Figure 4. Front view of the SR650: 8x 3.5-inch drive bays

The following figure shows the front of the SR650 server with 12x 3.5-inch drive bays.

Figure 5. Front view of the SR650: 12x 3.5-inch drive bays

The front of the SR650 server includes the following components:

• Up to 16x 2.5-inch, or 24x 2.5-inch, or 8x 3.5-inch, or 12x 3.5-inch hot-swap drive bays.
• One VGA port (optional).
• One USB 3.0 port.
• One USB 2.0 port with XClarity Controller access.
• Power button.
• Status LEDs.

The following figure shows the rear of the SR650 server.

Figure 6. Rear view of the SR650

The rear of the SR650 server includes the following components:

• Up to six PCIe expansion slots (depending on the riser cards selected).
• One LOM card slot.
• One 1 GbE port for XClarity Controller.
• One VGA port.
• Two USB 3.0 ports.
• Up to two hot-swap power supplies.

The following figure shows the locations of key components inside the SR650 server.

Figure 7. Internal view of the SR650

The following key components are located inside the SR650 server:

• Up to two processors.
• 24 DIMM slots (12 DIMM slots per processor).
• Drive backplanes.
• Two onboard NVMe PCIe connectors.
• One M.2 module connector.
• One LOM card connector.
• Two onboard PCIe slots 4 and 7.
• Two slots for PCIe riser cards.
• One TCM connector.
• Five (one processor) or six (two processors) hot-swap system fans.
