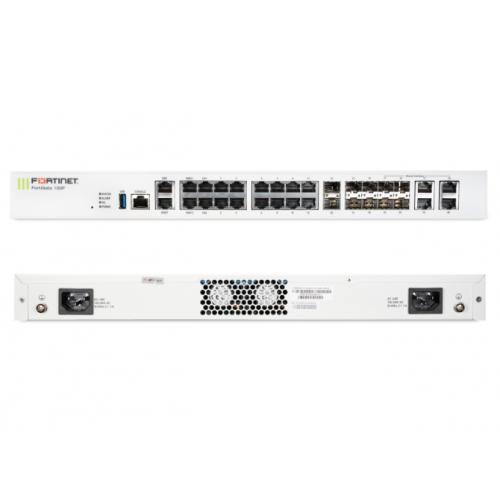

Firewall Fortinet FortiGate FG-100F

Firewall Fortinet FortiGate FG-100F  -  22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.



FortiGate 100F ofera o solutie excelenta de securitate si SD-WAN pentru intreprinderi mici si mijlocii care doresc sa isi desfasoare activitatea remote. Protejeaza impotriva amenintarilor cibernetice cu o accelerare integrata a sistemului si cu o retea SD-WAN securizata de varf, totul intr-o solutie simpla, accesibila si usor de implementat. Abordarea de retea bazata pe securitate a Fortinet asigura integrarea retelei la noua generatie de securitate.

Securitate

Identifica mii de aplicatii din traficul de retea. Protejeaza impotriva malware, exploatari si site-uri web daunatoare atat in ​​trafic criptat, cat si necriptat. Previne si detecteaza atacurile cibernetice datorita functiei de securitate FortiGuard.

Performanta

Ofera cele mai bune performante de protectie impotriva amenintarilor din industrie si latenta ultra-scazuta folosind tehnologia procesorului de securitate (SPU) construit special. Ofera performanta si protectie lider in industrie pentru traficul criptat SSL.

Suport Enterprise Protection:

• Hardware Unit
• 24×7 Comprehensive Support
• Advanced Hardware Replacement (NBD)
• Firmware and General Upgrades
• Enterprise Services Bundle (IPS – Intrusion Prevention System
• AntiVirus
• Botnet IP/Domain
• Mobile Malware
• FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct
• Application Control
• Web & Video Filtering
• Antispam
• Security Rating
• Industrial Security and FortiConverter Service) plus term of contract

Specificatii tehnice FortiGate 100F:

Interfata:

• 1 x USB
• 1 x Console
• 2 x GE RJ45 MGMT/DMZ
• 2 x GE RJ45 WAN
• 2 x GE RJ45 HA
• 12 x GE RJ45
• 2 x 10 GE SFP+ FortiLink Slots
• 4 x GE SFP Slots
• 4 x GE RJ45/SFP Shared Media Pairs

Performanta sistemului:

• IPS Throughput: 2.6 Gbps
• NGFW Throughput: 1.6 Gbps
• Threat Protection Throughput: 1 Gbps
• IPv4 Firewall Throughput (1518/ 512/ 64 byte, UDP): 20/ 18/ 10 Gbps
• Firewall Latency (64 byte, UDP): 4.97 μs
• Firewall Throughput (Packet per Second): 15 Mpps
• Sesiuni concurente (TCP): 1.5 milioane
• Sesiuni noi/secunda (TCP) 56.000
• Firewall Policies: 10.000
• IPsec VPN Throughput (512 byte): 1 11.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels: 2.500
• Client-to-Gateway IPsec VPN Tunnels: 16.000
• SSL-VPN Throughput: 1 Gbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 500
• SSL Inspection Throughput (IPS, avg. HTTPS): 1 Gbps
• SSL Inspection CPS (IPS, avg. HTTPS): 1.800
• SSL Inspection Concurrent Session (IPS, avg. HTTPS): 135.000
• Application Control Throughput (HTTP 64K): 2.2 Gbps
• CAPWAP Throughput (HTTP 64K): 15 Gbps
• Domenii virtuale (Default/ Maximum): 10/ 10
• Maximum Number of FortiSwitches Supported: 32
• Maximum Number of FortiAPs (Total/ Tunnel): 128/ 64
• Maximum Number of FortiTokens: 5.000
• High Availability Configurations: Active / Active, Active / Passive, Clustering

Greutate si dimensiuni:

• Dimensiuni (inaltime x latime x adancime): 44 x 432 x 254 mm
• Greutate: 3.29 kg

Conditii de mediu:

• Alimentare: 100 – 240 V AC, 50 – 60 Hz
• Puterea consumata (normal): 35.1 W/ 38.7 W
• Disiparea caldurii: 119.77 BTU/ora
• Interval de temperatura de functionare (T-T): 0°C – 40°C
• Intervalul de temperatura pentru depozitare: -35°C – 70°C
• Interval relativ operational de umiditate: 10 – 90% (fara condensare)

Certificari:

• ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
