1. Shop One-IT - Laptop, componente IT, PC, Servere /
  2. Componente PC /
  3. Placi de Baza /
  4. GIGABYTE MainBoard Desktop B550M DS3H (AM4, 4 x DDR4, 1 x DVI-D, 1 x HDMI, GbE LAN, 1 x PCI Express x16 (PCIEX16),1 x PCI Express x16 slot (PCIEX4), 1 x PCI Express x1, 2xM.2, 4 x SATAIII, 6x USB 3.2

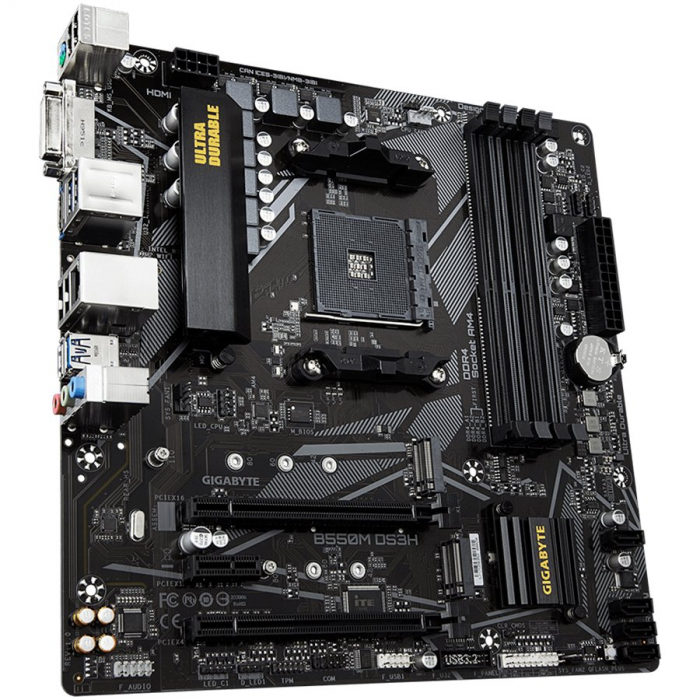

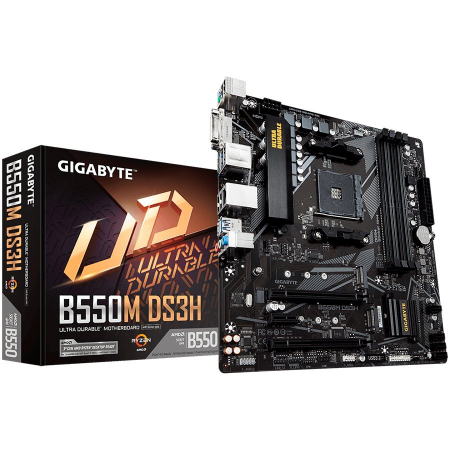

GIGABYTE MainBoard Desktop B550M DS3H (AM4, 4 x DDR4, 1 x DVI-D, 1 x HDMI, GbE LAN, 1 x PCI Express x16 (PCIEX16),1 x PCI Express x16 slot (PCIEX4), 1 x PCI Express x1, 2xM.2, 4 x SATAIII, 6x USB 3.2

Gigabyte
485,85 Lei
In stoc

Durata de livrare: 24 - 72 ore (stoc online)

Limita stoc
Adauga in cos
Cod Produs: B550M_DS3H Ai nevoie de ajutor? +40 262.223.385
Adauga la Favorite Cere informatii
  • Descriere
  • Specificatii
  • Review-uri (0)
Procesor
Chipset:
AMD B550
Prevazut cu CPU:
AMD Ryzen Series
Standard soclu procesor (CPU):
Socket AM4
CPU capacitate maxima suportata:
1
Main Board Desktop - Memory
Tip memorie:
DDR4 SDRAM
Factor de Forma a memoriei:
DIMM 288-pin
Viteza de memorare:
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata:
128 GB
Cantitatea totala de sloturi de memorie:
4
Ofera metode de corectie a erorilor:
ECC/non-ECC
Caracteristici memorie:
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Controller
Integrat:
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x2/SATA (1 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated:
Da
Locatie dispozitiv:
Integrat
Audio Chipset:
Realtek ALC887
Mod iesire audio:
7.1 Channel Surround
Standarde audio conforme:
High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:
Da
LAN Chipset:
Realtek RTL8118
Suport protocol legatura date:
Gigabit Ethernet/Fast Ethernet/Ethernet
Interfață furnizată
PS/2:
1
HDMI:
1 (HDMI (Type A))
DVI:
1 (DVI-D)
USB 3.2 Gen 1:
4 (USB 3.2 (type A))
USB 2.0:
4 (USB 2.0 (type A))
Audio Interface:
3 (3.5-mm minijack)
LAN:
1 (RJ-45)
Main Board Desktop - Mainboard Features
BIOS Type:
AMI
BIOS Features:
Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
Gigabyte EasyTune
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
Power Connectors Type:
24+8 pin
Mainboard Features:
RGB Fusion
Main Board Desktop - Software
Software inclus:
Norton Internet Security
Diverse
Cablu inclus:
2 x SATA cables
Accesorii incluse:
I/O Shield
User Guide
Driver CD
Main Board Desktop - Dimensions&Weight
Factor forma:
Micro ATX
Inaltime (mm):
244 mm
Latime (mm):
244 mm
Chipset: AMD B550
Prevazut cu CPU: AMD Ryzen Series
Standard soclu procesor (CPU): Socket AM4
CPU capacitate maxima suportata: 1
Tip memorie: DDR4 SDRAM
Factor de Forma a memoriei: DIMM 288-pin
Viteza de memorare: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: 128 GB
Cantitatea totala de sloturi de memorie: 4
Ofera metode de corectie a erorilor: ECC/non-ECC
Caracteristici memorie: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Integrat: Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x2/SATA (1 x M.2 (Key M))
Audio Integrated: Da
Locatie dispozitiv: Integrat
Audio Chipset: Realtek ALC887
Mod iesire audio: 7.1 Channel Surround
Standarde audio conforme: High Definition Audio
LAN Integrated: Da
LAN Chipset: Realtek RTL8118
Suport protocol legatura date: Gigabit Ethernet/Fast Ethernet/Ethernet
PS/2: 1
HDMI: 1 (HDMI (Type A))
DVI: 1 (DVI-D)
USB 3.2 Gen 1: 4 (USB 3.2 (type A))
USB 2.0: 4 (USB 2.0 (type A))
Audio Interface: 3 (3.5-mm minijack)
LAN: 1 (RJ-45)
BIOS Type: AMI
BIOS Features: Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
Gigabyte EasyTune
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
Power Connectors Type: 24+8 pin
Mainboard Features: RGB Fusion
Software inclus: Norton Internet Security
Cablu inclus: 2 x SATA cables
Accesorii incluse: I/O Shield
User Guide
Driver CD
Factor forma: Micro ATX
Inaltime (mm): 244 mm
Latime (mm): 244 mm
Produse returnabile aflate in garantie: Da
Termen garantie (luna): 36 luna(i)
Criterii de validare a garantiei: Număr de serie
Greutatea neta a pachetului: 0.7 kg
Bucati in pachet: 1
Greutatea bruta a cutiei: 10 kg
Retail Packaging Net Weight Carton: 0.15 kg
Retail Packaging Net Weight Plastic: 0.15 kg
Pachete (colete) in cutie: 10
Tip pachet: Retail
