Durata de livrare: 1
Procesor | |
Chipset: | Intel B760 |
Prevazut cu CPU: | Intel 12th Gen Processors Intel 13th Gen Processors |
Standard soclu procesor (CPU): | Socket 1700 |
CPU capacitate maxima suportata: | 1 |
Main Board Desktop - Memory | |
Tip memorie: | DDR4 SDRAM |
Factor de Forma a memoriei: | DIMM 288-pin |
Viteza de memorare: | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: | 128 GB |
Cantitatea totala de sloturi de memorie: | 4 |
Ofera metode de corectie a erorilor: | non-ECC |
Caracteristici memorie: | Two DDR Channels Unbuffered XMP |
Controller | |
Integrat: | Storage Controller: PCI Express 4.0 x4 (1 x M.2) Storage Controller: PCIe 4.0 x4/SATA (1 x M.2) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) |
Plug-in-card: | Wi-Fi Controller: 1 x M.2 (Key E) |
Main Board Desktop - Audio Output | |
Audio Integrated: | Da |
Locatie dispozitiv: | Integrat |
Audio Chipset: | Realtek ALC897 |
Mod iesire audio: | 7.1 Channel Surround |
Standarde audio conforme: | High Definition Audio |
Main Board Desktop - Networking Specifications | |
LAN Integrated: | Da |
LAN Chipset: | Realtek RTL8125BG |
Wi-Fi: | IEEE 802.11ax Wi-Fi 6 |
Bluetooth: | Bluetooth 5.3 |
Suport protocol legatura date: | 2.5 Gbps |
Slot | |
PCI Express 4.0 x16: | 2 |
PCI Express 3.0 x1: | 3 |

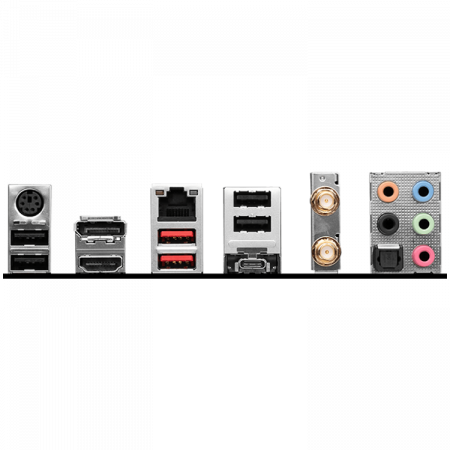

Interfață furnizată | |
PS/2: | 1 |
USB 2.0: | 4 (USB 2.0 (type A)) |
DisplayPort: | 1 |
HDMI: | 1 (HDMI (Type A)) |
LAN: | 1 (RJ-45) |
USB 3.2 Gen 2: | 1 (USB 3.2 (type C)); 2 (USB 3.2 (type A)) |
Audio Interface: | 1 (3.5-mm minijack); 5 (3.5-mm minijack) |
S/PDIF-out Optical: | 1 |
Main Board Desktop - Software | |
Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
Diverse | |
Cablu inclus: | SATA Cable |
Accesorii incluse: | Antenă I/O Shield Scurt Ghid de utilizare Clip |
Main Board Desktop - Dimensions&Weight | |
Factor forma: | ATX |
Inaltime (mm): | 304.8 mm |
Latime (mm): | 243.84 mm |
Bluetooth: Bluetooth 5.3
LAN: 1 (RJ-45)
Soclu Procesor (CPU): Socket 1700
Viteza De Memorare: 2133MHz(PC4-17000) , 2400MHz(PC4-19200) , 2666MHz(PC4-21300) , 2933MHz(PC4-23400) , 3200MHz(PC4-25600)
Wi-Fi: IEEE 802.11ax Wi-Fi 6
