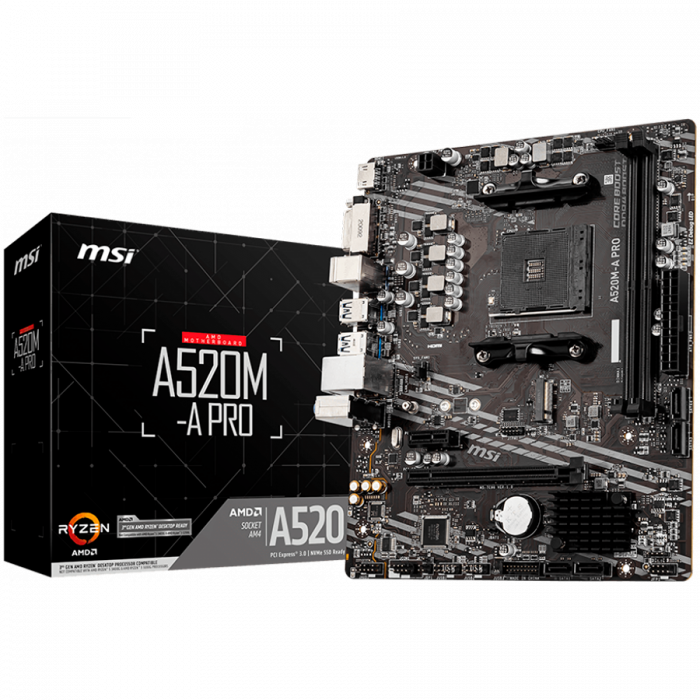

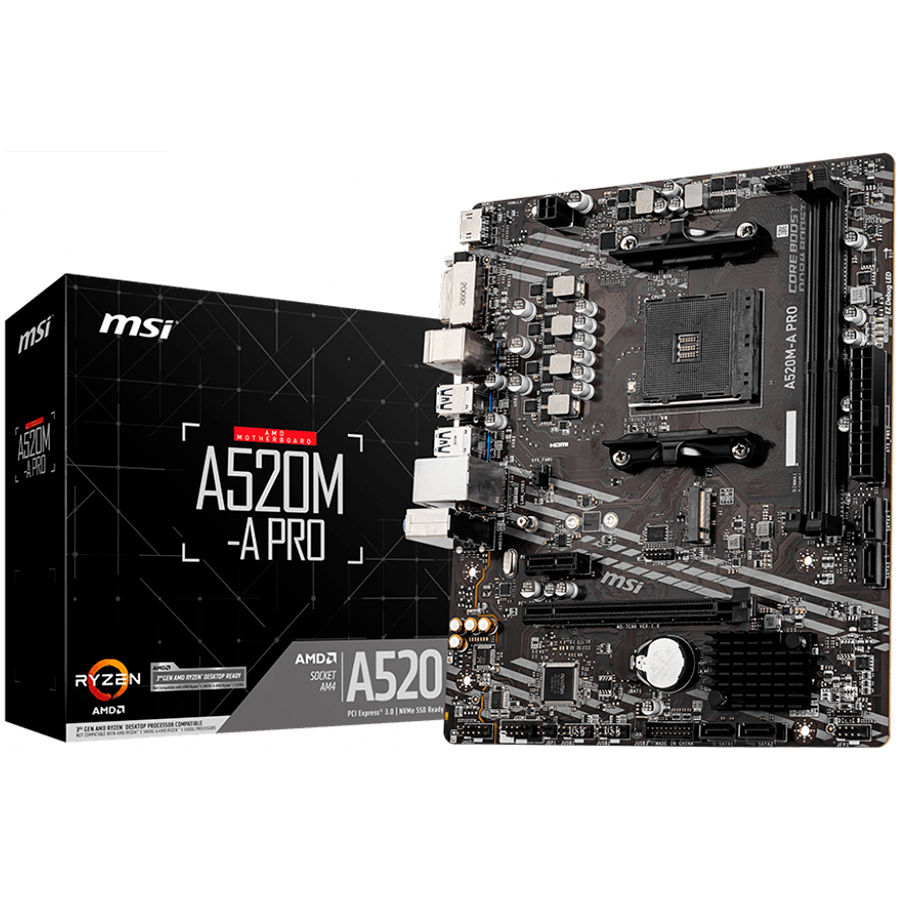

MSI Main Board Desktop A520M (AM4, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, M.2, 4xSATA3, 6xUSB3.2 Gen1, 6xUSB2.0, HD Audio, DVI-D, HDMI, GLAN) mATX Retail
MSI![MSI Main Board Desktop A520M (AM4, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, M.2, 4xSATA3, 6xUSB3.2 Gen1, 6xUSB2.0, HD Audio, DVI-D, HDMI, GLAN) mATX Retail [1]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/msi-main-board-desktop-a520m-am4-2xddr4-1xpci-ex16-1xpci-ex1-m-2-4xsata3-6xusb3-2-gen1-6xusb2-0-hd-audio-dvi-d-hdmi-glan-matx-retail-795276.png "MSI Main Board Desktop A520M (AM4, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, M.2, 4xSATA3, 6xUSB3.2 Gen1, 6xUSB2.0, HD Audio, DVI-D, HDMI, GLAN) mATX Retail [1]")
Durata de livrare: 24 - 72 ore (stoc online)
Cod Produs:
A520M-A_PRO
Ai nevoie de ajutor?
+40 262.223.385
- Descriere
- Specificatii
- Review-uri (0)
| Main Board Desktop - Processor | |
| Chipset: | AMD A520 |
| Prevazut cu CPU: | AMD Ryzen Series |
| Standard soclu procesor (CPU): | Socket AM4 |
| CPU capacitate maxima suportata: | 1 |
| Main Board Desktop - Memory | |
| Tip memorie: | DDR4 SDRAM |
| Factor de Forma a memoriei: | DIMM 288-pin |
| Viteza de memorare: | 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: | 64 GB |
| Cantitatea totala de sloturi de memorie: | 2 |
| Ofera metode de corectie a erorilor: | non-ECC |
| Caracteristici memorie: | Two DDR Channels Unbuffered Dual Rank Single Rank XMP |
| Controller | |
| Integrated: | Storage Controller: Supports: Level 0, Level 1 PCIe/SATA (1 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Locatia dispozitivului: | Integrated |
| Audio Chipset: | Realtek ALC892/ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Standard Audio: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8111H |
| Suport protocol legatura date: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot | |
| PCI Express x16: | 1 |
| PCI Express 3.0 x1: | 1 |
| Interface Provided | |
| LAN: | 1 (RJ-45) |
| HDMI: | 1 (HDMI (Type A)) |
| DVI: | 1 (DVI-D) |
| USB 3.2 Gen 1: | 4 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| Audio Interface: | 3 (3.5-mm minijack) |
| PS/2: | 2 |
| Miscellaneous | |
| Cabluri incluse: | 2 x SATA 6Gb/s Cables |
| Accesorii incluse: | I/O Shield User Guide Driver CD |
| Main Board Desktop - Dimensions&Weight | |
| Factor de forma: | Micro ATX |
| Inaltime: | 200 mm |
| Latime: | 236 mm |
Chipset: AMD A520
Prevazut cu CPU: AMD Ryzen Series
Standard soclu procesor (CPU): Socket AM4
CPU capacitate maxima suportata: 1
Tip memorie: DDR4 SDRAM
Factor de Forma a memoriei: DIMM 288-pin
Viteza de memorare: 1866MHz(PC4-14900)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: 64 GB
Cantitatea totala de sloturi de memorie: 2
Ofera metode de corectie a erorilor: non-ECC
Caracteristici memorie: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Unbuffered
Dual Rank
Single Rank
XMP
Integrated: Storage Controller:
Supports: Level 0, Level 1
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Supports: Level 0, Level 1
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Audio Integrated: yes
Locatia dispozitivului: Integrated
Audio Chipset: Realtek ALC892/ALC897
Audio Output Mode: 7.1 Channel Surround
Standard Audio: High Definition Audio
LAN Integrated: yes
LAN Chipset: Realtek RTL8111H
Suport protocol legatura date: Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express x16: 1
PCI Express 3.0 x1: 1
LAN: 1 (RJ-45)
HDMI: 1 (HDMI (Type A))
DVI: 1 (DVI-D)
USB 3.2 Gen 1: 4 (USB 3.2 (type A))
USB 2.0: 2 (USB 2.0 (type A))
Audio Interface: 3 (3.5-mm minijack)
PS/2: 2
Cabluri incluse: 2 x SATA 6Gb/s Cables
Accesorii incluse: I/O Shield
User Guide
Driver CD
User Guide
Driver CD
Factor de forma: Micro ATX
Inaltime: 200 mm
Latime: 236 mm
Produse returnabile aflate in garantie: Yes
Termen de garantie: 36 luni
Criterii de validare a garantiei: Serial Number
Adancime pachet: 236 mm
Grosimea pachetului: 200 mm
Inaltime pachet: 70 mm
Greutatea neta a pachetului: 0.635 kg
Bucati in pachet: 1
Greutatea bruta a cutiei: 1 kg
Retail Packaging Net Weight Carton: 0.1 kg
Retail Packaging Net Weight Plastic: 0.1 kg
Pachete (colete) in cutie: 1
Tip pachet: Retail
