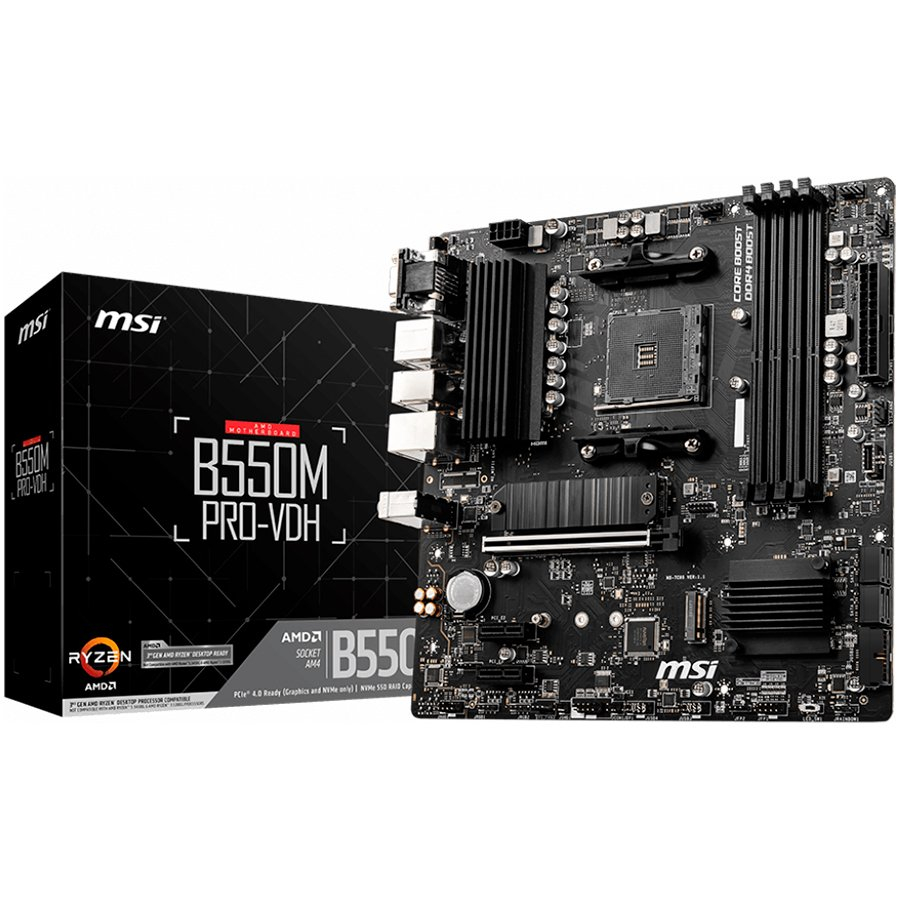

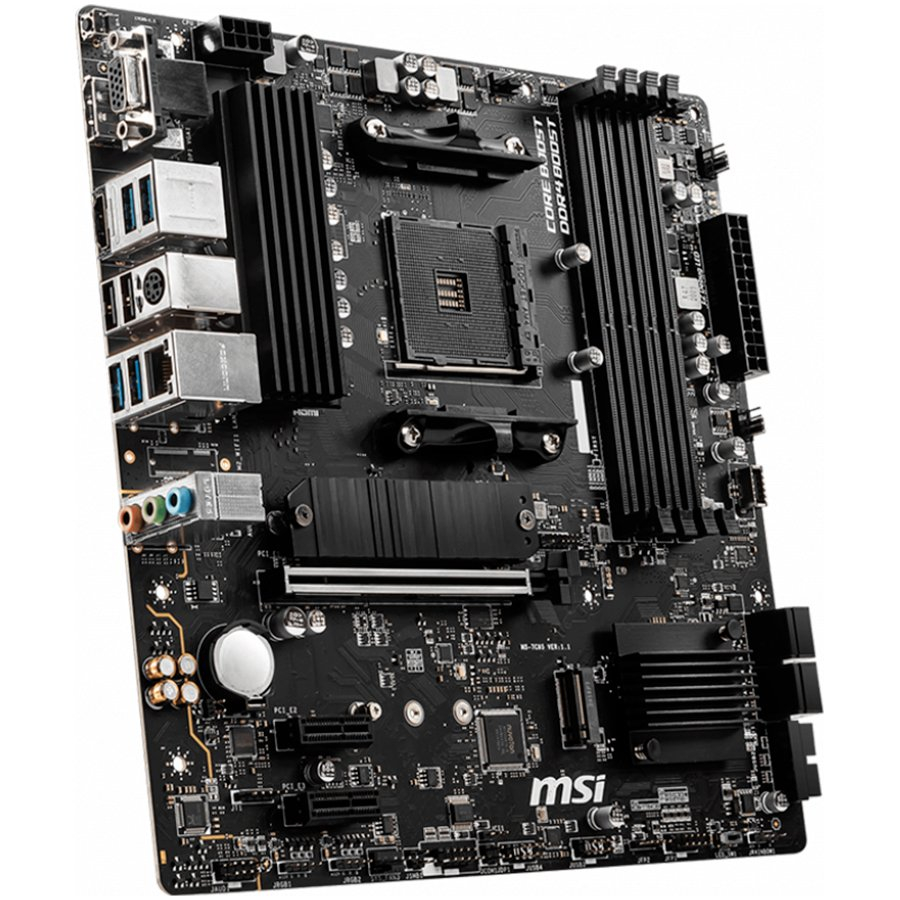

MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio
MSI![MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [1]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/msi-b550m-pro-vdh-m-atx-socket-am4-amd-b550-chipset-4-dimms-dual-channel-ddr4-up-to-4400-oc-mhz-1x-pcie-4-0-3-0-x16-slot-2x-m-2-slots-4x-usb-3-2-gen-1-399500.jpg "MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [1]")
![MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [2]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/msi-b550m-pro-vdh-m-atx-socket-am4-amd-b550-chipset-4-dimms-dual-channel-ddr4-up-to-4400-oc-mhz-1x-pcie-4-0-3-0-x16-slot-2x-m-2-slots-4x-usb-3-2-gen-1-096769.jpg "MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [2]")
![MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [0]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/medium/msi-b550m-pro-vdh-m-atx-socket-am4-amd-b550-chipset-4-dimms-dual-channel-ddr4-up-to-4400-oc-mhz-1x-pcie-4-0-3-0-x16-slot-2x-m-2-slots-4x-usb-3-2-gen-1-399500.jpg "MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [0]")
![MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [1]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/medium/msi-b550m-pro-vdh-m-atx-socket-am4-amd-b550-chipset-4-dimms-dual-channel-ddr4-up-to-4400-oc-mhz-1x-pcie-4-0-3-0-x16-slot-2x-m-2-slots-4x-usb-3-2-gen-1-096769.jpg "MSI B550M PRO-VDH,m-ATX,Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,1G LAN,7.1 Audio [1]")
Durata de livrare: 24 - 72 ore (stoc online)
Cod Produs:
B550M_PRO-VDH
Ai nevoie de ajutor?
+40 262.223.385
- Descriere
- Specificatii
- Review-uri (0)
| Procesor | |
| Chipset: | AMD B550 |
| Prevazut cu CPU: | AMD Ryzen Series |
| Standard soclu procesor (CPU): | Socket AM4 |
| CPU capacitate maxima suportata: | 1 |
| Main Board Desktop - Memory | |
| Tip memorie: | DDR4 SDRAM |
| Factor de Forma a memoriei: | DIMM 288-pin |
| Viteza de memorare: | 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: | 128 GB |
| Cantitatea totala de sloturi de memorie: | 4 |
| Ofera metode de corectie a erorilor: | ECC/non-ECC |
| Caracteristici memorie: | Two DDR Channels Unbuffered |
| Controller | |
| Integrat: | Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Storage Controller: PCIe/SATA (1 x M.2 (Key M)) Storage Controller: PCI Express 3.0 x4 (1 x M.2 (Key M)) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | Da |
| Locatie dispozitiv: | Integrat |
| Audio Chipset: | Realtek ALC892 |
| Mod iesire audio: | 7.1 Channel Surround |
| Standarde audio conforme: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | Da |
| LAN Chipset: | Realtek RTL8111HN |
| Suport protocol legatura date: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 2 |
| Interfață furnizată | |
| VGA: | 1 (15-pin D-sub) |
| PS/2: | 1 |
| LAN: | 1 (RJ-45) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| USB 3.2 Gen 1: | 4 (USB 3.2 (type A)) |
| Audio Interface: | 3 (3.5-mm minijack) |
| HDMI: | 1 (HDMI (Type A)) |
| DisplayPort: | 1 |
| Main Board Desktop - Mainboard Features | |
| Power Connectors Type: | 24+8 pin |
| Diverse | |
| Accesorii incluse: | Documentație |
| Main Board Desktop - Dimensions&Weight | |
| Factor forma: | Micro ATX |
| Inaltime (mm): | 244 mm |
| Latime (mm): | 244 mm |
Chipset: AMD B550
Prevazut cu CPU: AMD Ryzen Series
Standard soclu procesor (CPU): Socket AM4
CPU capacitate maxima suportata: 1
Tip memorie: DDR4 SDRAM
Factor de Forma a memoriei: DIMM 288-pin
Viteza de memorare: 1866MHz(PC4-14900)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: 128 GB
Cantitatea totala de sloturi de memorie: 4
Ofera metode de corectie a erorilor: ECC/non-ECC
Caracteristici memorie: Two DDR Channels
Unbuffered
Unbuffered
Integrat: Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
PCI Express 3.0 x4 (1 x M.2 (Key M))
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
PCI Express 3.0 x4 (1 x M.2 (Key M))
Audio Integrated: Da
Locatie dispozitiv: Integrat
Audio Chipset: Realtek ALC892
Mod iesire audio: 7.1 Channel Surround
Standarde audio conforme: High Definition Audio
LAN Integrated: Da
LAN Chipset: Realtek RTL8111HN
Suport protocol legatura date: Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
VGA: 1 (15-pin D-sub)
PS/2: 1
LAN: 1 (RJ-45)
USB 2.0: 2 (USB 2.0 (type A))
USB 3.2 Gen 1: 4 (USB 3.2 (type A))
Audio Interface: 3 (3.5-mm minijack)
HDMI: 1 (HDMI (Type A))
DisplayPort: 1
Power Connectors Type: 24+8 pin
Accesorii incluse: Documentație
Factor forma: Micro ATX
Inaltime (mm): 244 mm
Latime (mm): 244 mm
Produse returnabile aflate in garantie: Da
Termen garantie (luna): 36 luna(i)
Criterii de validare a garantiei: Număr de serie
Greutatea neta a pachetului: 1.11 kg
Bucati in pachet: 1
Greutatea bruta a cutiei: 15 kg
Retail Packaging Net Weight Carton: 0.1 kg
Retail Packaging Net Weight Plastic: 0.1 kg
Pachete (colete) in cutie: 10
Tip pachet: Retail
