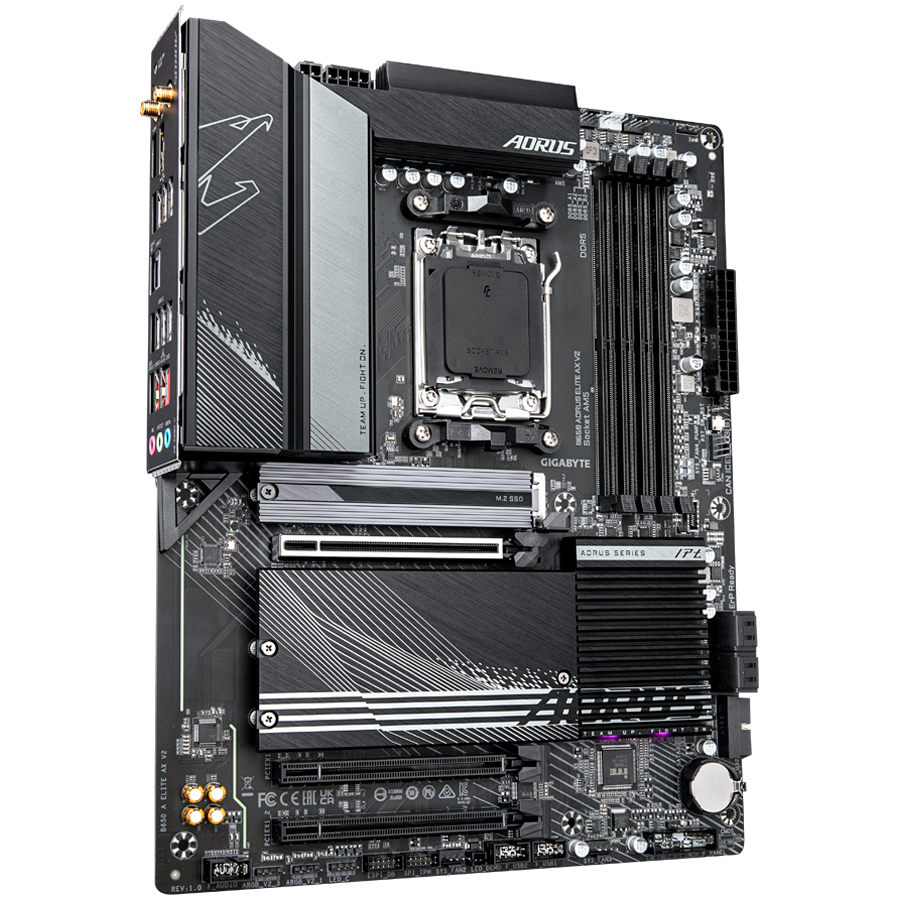

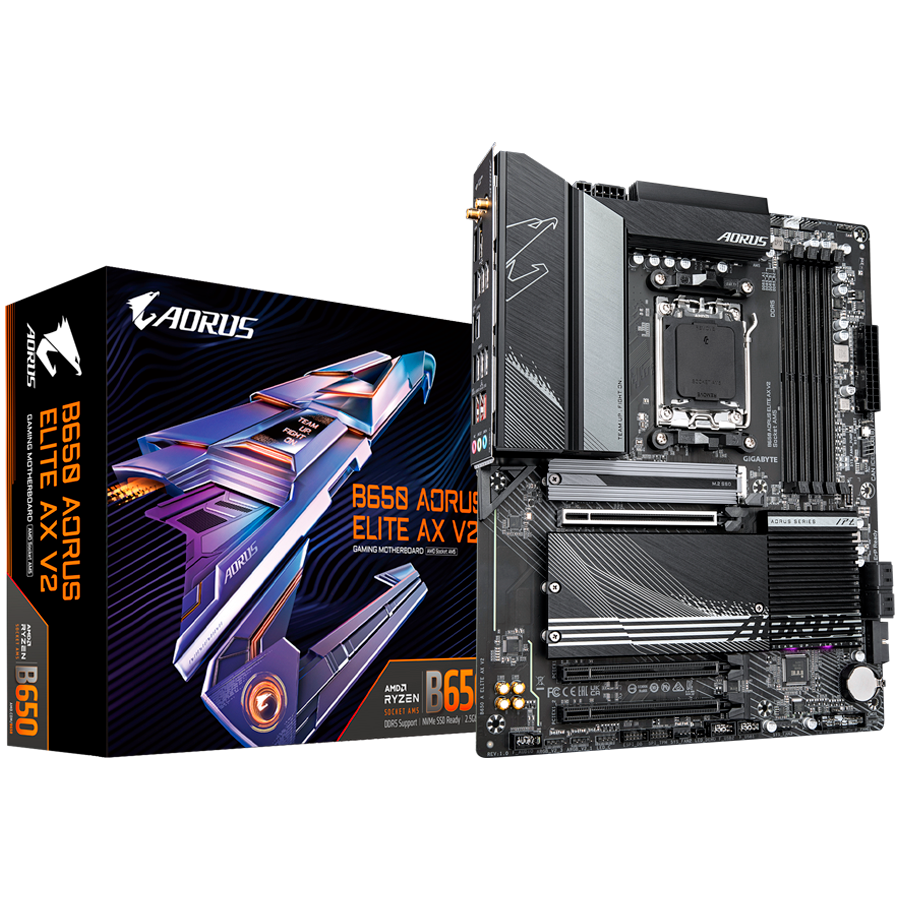

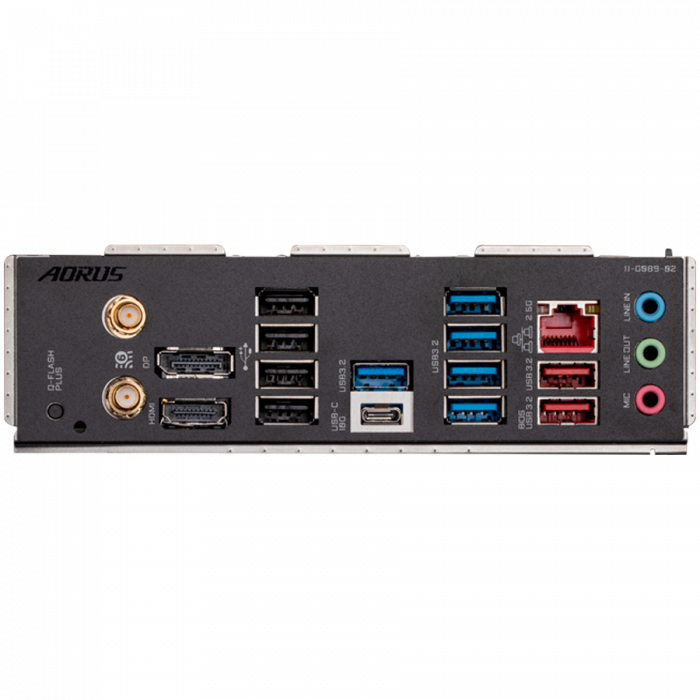

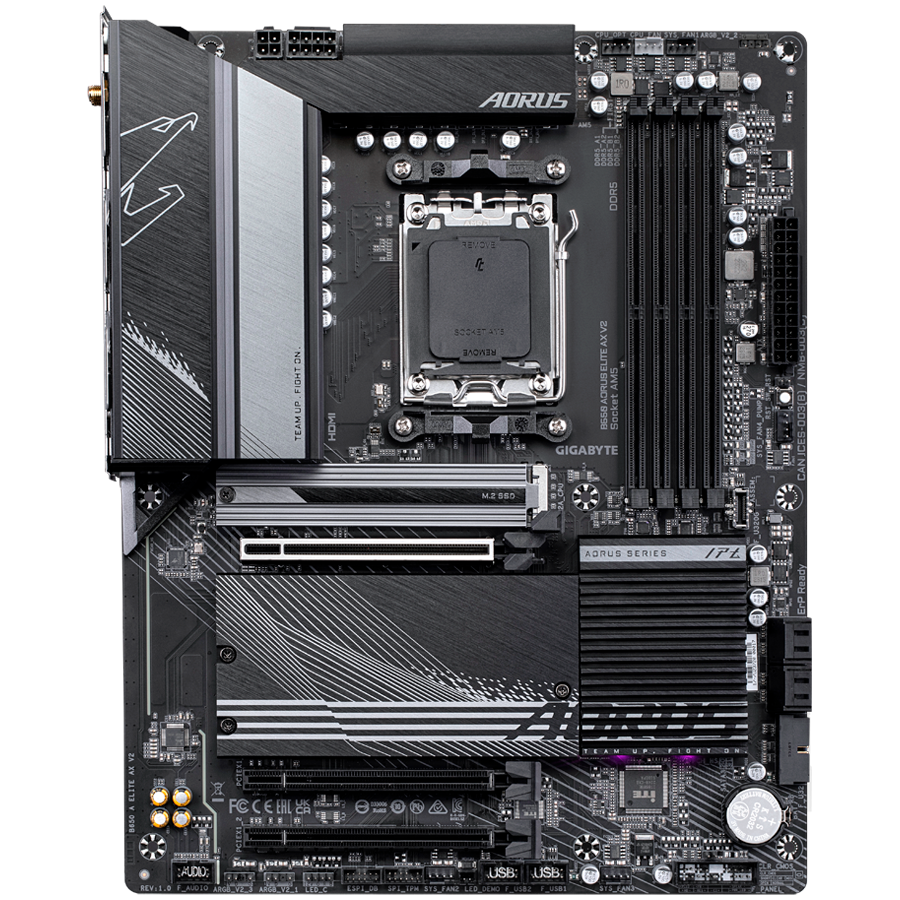

GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX)
Gigabyte![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [1]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-747531.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [1]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [2]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-710313.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [2]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [3]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-464589.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [3]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [4]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/original/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-592053.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [4]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [0]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/medium/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-747531.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [0]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [1]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/medium/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-710313.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [1]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [2]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/medium/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-464589.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [2]")
![GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [3]](https://gomagcdn.ro/domains/shop.one-it.ro/files/product/medium/gigabyte-mb-b650-aorus-elite-ax-v2-am5-4x-ddr5-1x-pci-e-4-0-x16x16-2x-pci-e-3-0-x16x1-3x-m-2-4x-sata-1xhdmi-1xdp-wifi-6e-bt-2-5gbe-atx-592053.png "GIGABYTE MB B650 AORUS ELITE AX V2 (AM5, 4x DDR5, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x16x1, 3x M.2, 4x SATA, 1xHDMI, 1xDP, WiFI 6E, BT, 2.5GbE, ATX) [3]")
Durata de livrare: 24 - 72 ore (stoc online)
Cod Produs:
B650 A ELITE AX V2
Ai nevoie de ajutor?
+40 262.223.385
- Descriere
- Specificatii
- Review-uri (0)
| Procesor | |
| Set de cipuri: | AMD B650 |
| Prevazut cu CPU: | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| Suport CPU Standard: | Socket AM5 |
| Cantitate maximă de CPU suportată: | 1 |
| Main Board Desktop - Memory | |
| Tipul de memorie: | DDR5 SDRAM |
| Factorul de formă al memoriei: | DIMM cu 288 de pini |
| Viteza memoriei: | 5200MHz(PC5-41600) |
| Capacitate maximă de stocare a memoriei de sistem instalabile: | 256 GB |
| Spațiu de memorie Cantitate totală: | 4 |
| Oferă o metodă de verificare a erorilor: | non-ECC |
| Caracteristici memorie: | Unbuffered Dual Rank Single Rank XMP AMD EXPO |
| Controller | |
| Integrat: | Storage Controller: Supports: Level 0, Level 1 PCI Express 5.0 x4 (1 x M.2) Storage Controller: Supports: Level 0, Level 1 PCI Express 4.0 x4 (2 x M.2) Storage Controller: Supports: Level 0, Level 1 SATA III-600 (4) |
| Plug-in-card: | Wi-Fi Controller: Realtek RTL8852CE |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | Da |
| Locația dispozitivului: | Integrat |
| Modul de redare audio: | 7.1 Channel Surround |
| Standarde audio conforme: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | Da |
| Wi-Fi: | IEEE 802.11ax Wi-Fi 6E |
| Bluetooth: | Bluetooth 5.3 |
| Protocolul de legătură de date acceptă: | 2.5 Gbps |
| Slot | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 2 |
| Interfață furnizată | |
| DisplayPort: | 1 |
| HDMI: | 1 (HDMI (Tip A)) |
| Antenă: | 2 |
| USB 3.2 Gen. 2: | 1 (USB 3.2 (type C)); 2 (USB 3.2 (type A)) |
| USB 3.2 Gen. 1: | 5 (USB 3.2 (type A)) |
| USB 2.0: | 4 (USB 2.0 (type A)) |
| LAN: | 1 (RJ-45) |
| Interfață audio: | 3 (3.5-mm mini jack) |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM |
| Hardware Monitoring: | CPU Temperature CPU Voltage System Temperature System Voltage |
| Power Connectors Type: | 24+8+4 pin |
| Mainboard Features: | Fan Speed Control |
| Main Board Desktop - Software | |
| Sistem de operare suportat: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Main Board Desktop - Dimensions&Weight | |
| Factor de formă: | ATX |
| Înălțime (mm): | 244 mm |
| Lățime (mm): | 305 mm |
Set de cipuri: AMD B650
Prevazut cu CPU: AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series
Suport CPU Standard: Socket AM5
Cantitate maximă de CPU suportată: 1
Tipul de memorie: DDR5 SDRAM
Factorul de formă al memoriei: DIMM cu 288 de pini
Viteza memoriei: 5200MHz(PC5-41600)
Capacitate maximă de stocare a memoriei de sistem instalabile: 256 GB
Spațiu de memorie Cantitate totală: 4
Oferă o metodă de verificare a erorilor: non-ECC
Caracteristici memorie: Unbuffered
Dual Rank
Single Rank
XMP
AMD EXPO
Dual Rank
Single Rank
XMP
AMD EXPO
Integrat: Storage Controller:
Supports: Level 0, Level 1
PCI Express 5.0 x4 (1 x M.2)
Storage Controller:
Supports: Level 0, Level 1
PCI Express 4.0 x4 (2 x M.2)
Storage Controller:
Supports: Level 0, Level 1
SATA III-600 (4)
Supports: Level 0, Level 1
PCI Express 5.0 x4 (1 x M.2)
Storage Controller:
Supports: Level 0, Level 1
PCI Express 4.0 x4 (2 x M.2)
Storage Controller:
Supports: Level 0, Level 1
SATA III-600 (4)
Plug-in-card: Wi-Fi Controller:
Realtek RTL8852CE
Realtek RTL8852CE
Audio Integrated: Da
Locația dispozitivului: Integrat
Modul de redare audio: 7.1 Channel Surround
Standarde audio conforme: High Definition Audio
LAN Integrated: Da
Wi-Fi: IEEE 802.11ax Wi-Fi 6E
Bluetooth: Bluetooth 5.3
Protocolul de legătură de date acceptă: 2.5 Gbps
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
DisplayPort: 1
HDMI: 1 (HDMI (Tip A))
Antenă: 2
USB 3.2 Gen. 2: 1 (USB 3.2 (type C)); 2 (USB 3.2 (type A))
USB 3.2 Gen. 1: 5 (USB 3.2 (type A))
USB 2.0: 4 (USB 2.0 (type A))
LAN: 1 (RJ-45)
Interfață audio: 3 (3.5-mm mini jack)
BIOS Type: AMI
BIOS Features: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
Hardware Monitoring: CPU Temperature
CPU Voltage
System Temperature
System Voltage
CPU Voltage
System Temperature
System Voltage
Power Connectors Type: 24+8+4 pin
Mainboard Features: Fan Speed Control
Sistem de operare suportat: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Microsoft Windows 11 64-bit
Factor de formă: ATX
Înălțime (mm): 244 mm
Lățime (mm): 305 mm
Garanția produselelor returnabile: Da
Termen de garanție (o lună): 36 luna(i)
Criteriile de validare a garanției: Numărul seriei
Lungimea ambalajului (mm): 335 mm
Lățimea ambalajului (mm): 270 mm
Înălțimea ambalajului (mm): 80 mm
Greutatea brută a ambalajului (kg): 2.29 kg
Greutatea netă a ambalajului (kg): 1.9 kg
Bucăți în ambalaj: 1
Greutatea brută a cutiei (kg): 1.7 kg
Ambalare cu amănuntul Greutate netă a cutiei: 0.01 kg
Ambalaje pentru vânzare cu amănuntul Greutate netă plastic: 0.01 kg
Ambalaje în cutie: 1
Tipul ambalajului: Retail
Codul EAN: 4719331859381
Economic operator in EU / authorized representative: Giga-Byte Technology BV
Postal address: Steenoven 24, 5626 DK Eindhoven, Netherlands
Electronic address: EU.grp@gigabyte.com
