NXS-9700 3G is a single modem device with a sending/receiving throughput of up to 30 SMS/min. The device can be configured for device failover (HA cluster). Thanks to a built-in 3G modem, SMS messages are sent/received directly to/from GSM/UMTS network without using any external 3rd party solutions.
SMSEagle is a professional hardware SMS gateway for sending and receiving SMS messages in an automated manner. The device is designed with focus on reliability and stability. It has a Linux on-board, modern responsive web-interface, database backend, and built-in 3G modem with watchdog mechanism. The device is equipped with external antenna – important especially in poor signal reception conditions (eg. Server rooms). SMSEagle has a built-in SQL database for secure storage of messages. Built-in SNMP agent allows to constantly monitor performance of the SMSEagle. The device has a range of built-in plugins that enable additional functionalities and easy to use API for integration with external applications.
Product features:
- Sending & Receiving SMS (managing messages with Inbox, Outbox, Sent Items)
- Sending & Receiving MMS messages
- Sending to single users or groups of users
- Sending SMS at specified date and time (SMS scheduling)
- Limit sending to specified hours (for example between 08:00-18:00)
- Smartphone-like conversation mode (messages are nicely grouped by phone number). You can easily track history of what you send and receive to each user
- Support of different message types (normal SMS/multipart SMS/flash SMS//MMS/binary SMS/USSD-code/WAP Push link)
- Message templates
- Phonebook (single users, groups)
- Import of contacts from CSV file
- Monitoring services (eg Web server, Mail server), SMS alerting and SNMP Traps
- Auto-reply to incoming SMS
- Email to SMS forwarding
- SMS to Email forwarding
- Periodic SMS to send SMS messages at a desired time interval
- Shift management to assign Phonebook contacts to working shifts
- Forward incoming SMS to remote script (callback URL)
- Blacklist feature to exclude numbers
- Outlook Plugin to send SMS directly from the app
- Digital input and output controlled via SMS
- Multi-Factor Authentication (MFA)
- Message Escalation feature
- Backup to FTP
- Periodic folders cleanup
- Automatic backup to FTP
- Temperature & humidity SMS alerts
- Multiuser support (each user has access to a private Inbox, Outbox, Sent Items)
- Unicode support (support of national characters)
- Multipart SMS message support
- API for sending SMS from external applications & systems
- Multilanguage (English, French, German, Polish, Spanish) web-interface
- NTP client installed
- SNMP agent installed
- Built-in Apache2 web server
- Built-in PostgreSQL database server
- Built-in Postfix email server
- Modern responsive interface
- HTTPS support
- Support for delivery reports
- Watchdog mechanisms for 4G modem (automatic modem health control)
- Failover support (HA cluster of 2 devices possible)
- HSPA+ data rates of up to 21 Mbps download and 5.7 Mbps upload (can be disabled/enabled)
- Support of external temperature sensors

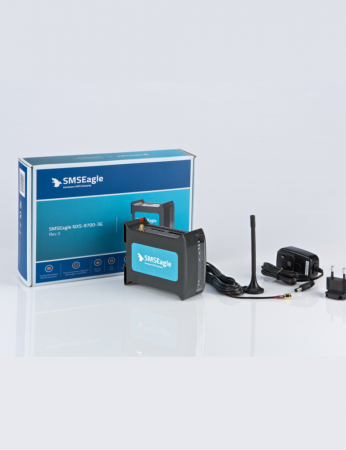

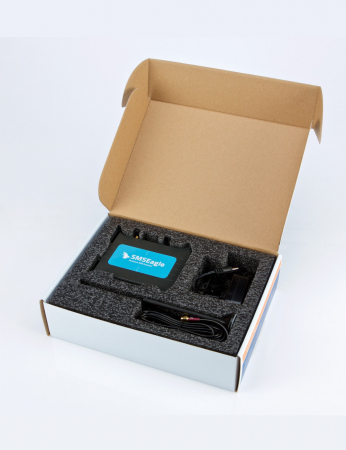

SMSEagle package includes:
- SMSEagle hardware SMS gateway
- Omnidirectional 2dBi UMTS/LTE antenna (with 3m cable)
- AC/DC Adapter (input voltage: 100-240V)
- Quick-start guide
- 12-month warranty (optional warranty extension available)
- Access to free software upgrades within warranty period
Data sheet
- CPU
- ARM A53 1.2GHz (quad-core)
- Internal Storage
- 4GB eMMC storage
- RAM
- 1GB DDR2
- Wavebands/RF Bands
- 3G Wavebands: UMTS 800/850/900/AWS/1900/2100 MHz, GSM/GPRS 850/900/1800/1900 MHz
- Modem Type
- 3G
- Num. Of Modems
- 1
- Throughput (Maximum)
- 30 SMS/min Sending/Receiving
- SIM Card Standard
- mini
- Antenna
- Omnidirectional 2dBi antenna with magnetic foot
- Antenna Connector
- SMA
- Network Interface
- Ethernet 10/100/1000 TX
- Other Interfaces
- 1x HDMI, 2x USB, 4xDI, 4x DO, 1x 1 Wire
- Power Supply
- Voltage ranges: 100–240 V AC Frequency: 50–60Hz
- Casing
- ABS, DIN rail installation (rack mount possible via DIN-rack adapter)
- Linux Kernel
- 4.14
- Device Failover: (HA-Cluster Compatibility)
- Yes
- Modem Failover
- No
- Multi-Modem Strategy
- No
- Certifications
- CE, FCC, IC, RoHS, UKCA, GCF (for RF-module), PTCRB (for RF-module), RCM (for RF-module)
